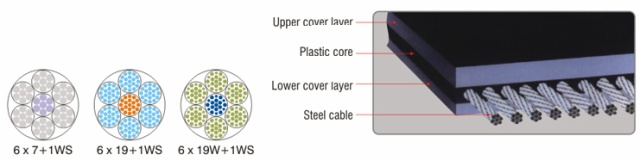

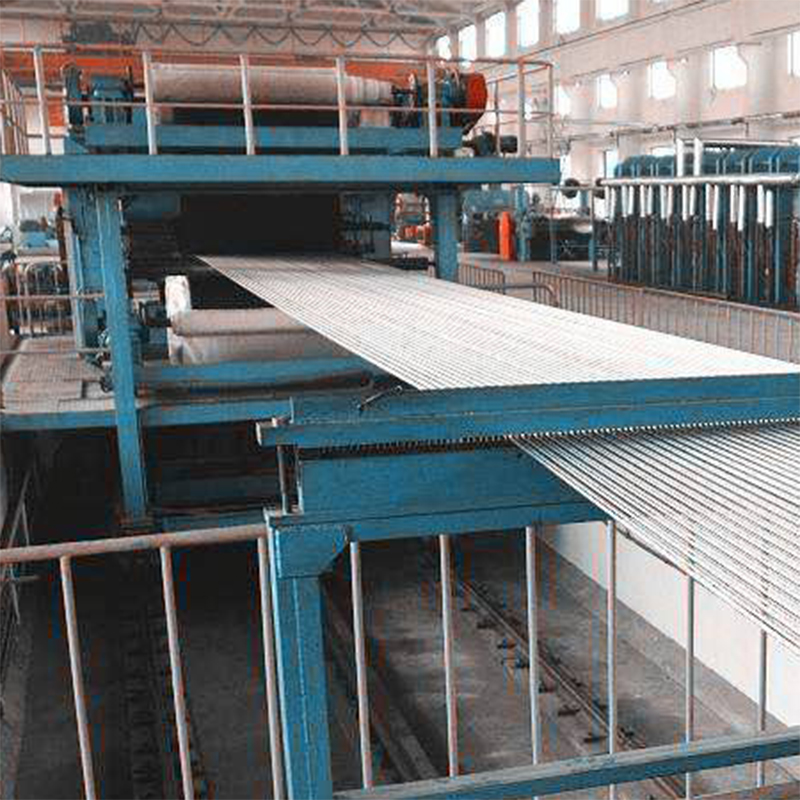

Wire rope conveyor belt is a rubber conveyor belt with steel wire as the skeleton. It has the advantages of large tensile strength, good impact resistance, long life, small elongation, good slotting, good flexural resistance, suitable for long distance, large haul and high speed conveying materials. The product is composed of core rubber, wire rope, covering layer and edge rubber.
Wire rope conveyor belt is a rubber conveyor belt with steel wire as the skeleton. It has the advantages of large tensile strength, good impact resistance, long life, small elongation, good slotting, good flexural resistance, suitable for long distance, large haul and high speed conveying materials. The product is composed of core rubber, wire rope, covering layer and edge rubber.
Wire rope conveyor belt is suitable for coal mines, mines, ports, electric power, metallurgy, building materials and other industries under the condition of anti-tearing material transport, can be used for long distance, large span, large volume and high speed material transport.
Adhesion of steel cord
Strength | ST 600 | ST 800 | ST 1000 | ST 1250 | ST 1600 | ST 2000 | ST 2500 | ST 3150 | ST 4000 | ST 4500 | ST 5000 | ST 5400 | ST 6300 |
Adhesion N/mm | 54 | 60 | 64 | 69 | 74 | 84 | 98 | 108 | 118 | ||||
Adhesion N/mm | 60 | 70 | 80 | 95 | 105 | 105 | 130 | 140 | 145 | 150 | 165 | 175 | 180 |
Standard specifications
Belt strength | Cord diam d（mm） | Cord structure | Pitch P | Standard working | Standard rubber cover | Belt weight | Min.Pulley | Cord strength |
ST-630 | 3.0 | 6*7+1WS | 10 | 90 | 5*5 | 20.0 | 800 | 6.93 |
ST-800 | 3.5 | 6*7+1WS | 10 | 110 | 5*5 | 20.6 | 800 | 8.8 |
ST-1000 | 4.0 | 6*7+1WS | 12 | 140 | 6*6 | 24.7 | 800 | 13.2 |
ST-1250 | 4.5 | 6*7+1WS | 12 | 175 | 6*6 | 25.4 | 800 | 16.5 |
ST-1600 | 5.0 | 6*19+1WS | 12 | 225 | 6*6 | 26.0 | 1000 | 21.12 |
ST-2000 | 6.0 | 6*19+1WS | 12 | 285 | 8*6 | 30.0 | 1000 | 26.4 |
ST-2500 | 7.5 | 6*19W+1WS | 15 | 355 | 8*6 | 32.2 | 1250 | 41.25 |
ST-3150 | 8.1 | 6*19W+1WS | 15 | 450 | 8*8 | 35.7 | 1400 | 51.98 |
ST-4000 | 9.1 | 6*19W+1WS | 17 | 570 | 8*8 | 37.8 | 1600 | 74.8 |
ST-4500 | 9.7 | 6*19W+1WS | 16 | 645 | 8*8 | 38.7 | 1800 | 79.2 |
ST-5000 | 10.9 | 6*19W+1WS | 17 | 715 | 8.5*8.5 | 41.9 | 1800 | 93.5 |
ST-5400 | 11.3 | 6*19W+1WS | 17 | 760 | 9*9 | 43.9 | 2000 | 101 |
ST-6300 | 12.3 | 6*19W+1WS | 18 | 900 | 10*10 | 48.3 | 2000 | 124.74 |
Number of steel cords
Belt width（mm） | ST 600 | ST 800 | ST 1000 | ST 1250 | ST 1600 | ST 2000 | ST 2500 | ST 3150 | ST 4000 | ST 4500 | ST 5000 | ST 5400 | ST 6300 |
800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | |||||
1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 56 | 60 | 56 | 56 | 52 |
1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 68 | 72 | 68 | 68 | 63 |
1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 79 | 84 | 79 | 79 | 74 |
1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 91 | 96 | 91 | 91 | 85 |
1800 | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 103 | 107 | 103 | 103 | 96 | |
2000 | 159 | 159 | 159 | 159 | 128 | 128 | 114 | 120 | 114 | 114 | 107 | ||
2200 | 176 | 141 | 141 | 125 | 133 | 125 | 125 | 118 | |||||
2400 | 193 | 155 | 155 | 137 | 146 | 137 | 137 | 129 |
Characteristic and grades
Test items | Property indexes | |||||
GB700-88 | DIN22131-88 | |||||
Class H | Class M | Class W | Class X | Class Y | ||
Tensile strength | Mpa≥ | 17.65 | 13.73 | 18 | 25 | 20 |
Elongation at break | %≥ | 450 | 400 | 400 | 450 | 400 |
After aging | % | -25～+250 | -25～+250 | -25～+250 | -25～+250 | -25～+250 |
Abrasion | ≤ | 0.6cm3/1.61Km | 0.8cm3/1.61Km | 90cm3 | 120cm3 | 150cm3 |
Corrugated Sidewall Rubber Conveyor Belt is composed of three parts: base band, retaining band and diaphragm. The guard edge is used to prevent material from sl...
Acid and alkali resistant conveyor belt, is a kind of suitable for and acid and alkali contact of the working environment, such as phosphate fertilizer manufact...
Patterned Chevron Rubber Conveyor Belt conveyor belt is a dip Angle conveyor belt composed of patterned covering glue and non-flat covering glue on working face...
PVC, PVG Flame retardant conveyor belts are mainly used in coal mines. Its characteristics are: the strip body does not delaminate, small elongation, impact res...
