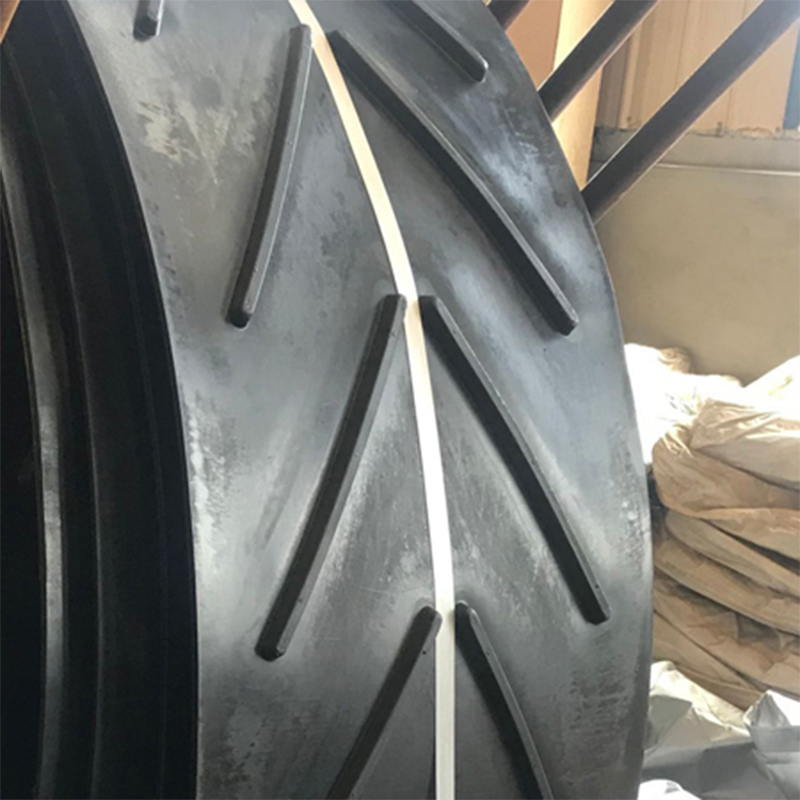

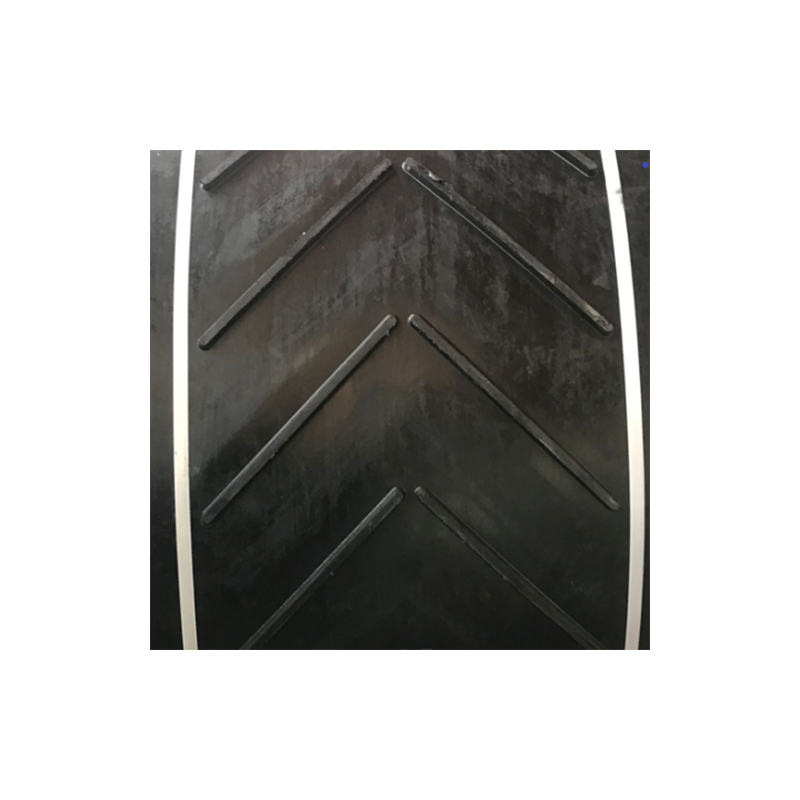

Patterned Chevron Rubber Conveyor Belt conveyor belt is a dip Angle conveyor belt composed of patterned covering glue and non-flat covering glue on working face and core. The belt is higher than the belt body "people" pattern, pattern but the opening is also closed, each pattern can be divided into high, middle and low.
Patterned Chevron Rubber Conveyor Belt conveyor belt is a dip Angle conveyor belt composed of patterned covering glue and non-flat covering glue on working face and core. The belt is higher than the belt body "people" pattern, pattern but the opening is also closed, each pattern can be divided into high, middle and low.
Patterned conveyor belt is a dip Angle conveyor belt composed of patterned covering glue and non-flat covering glue on working face and core.

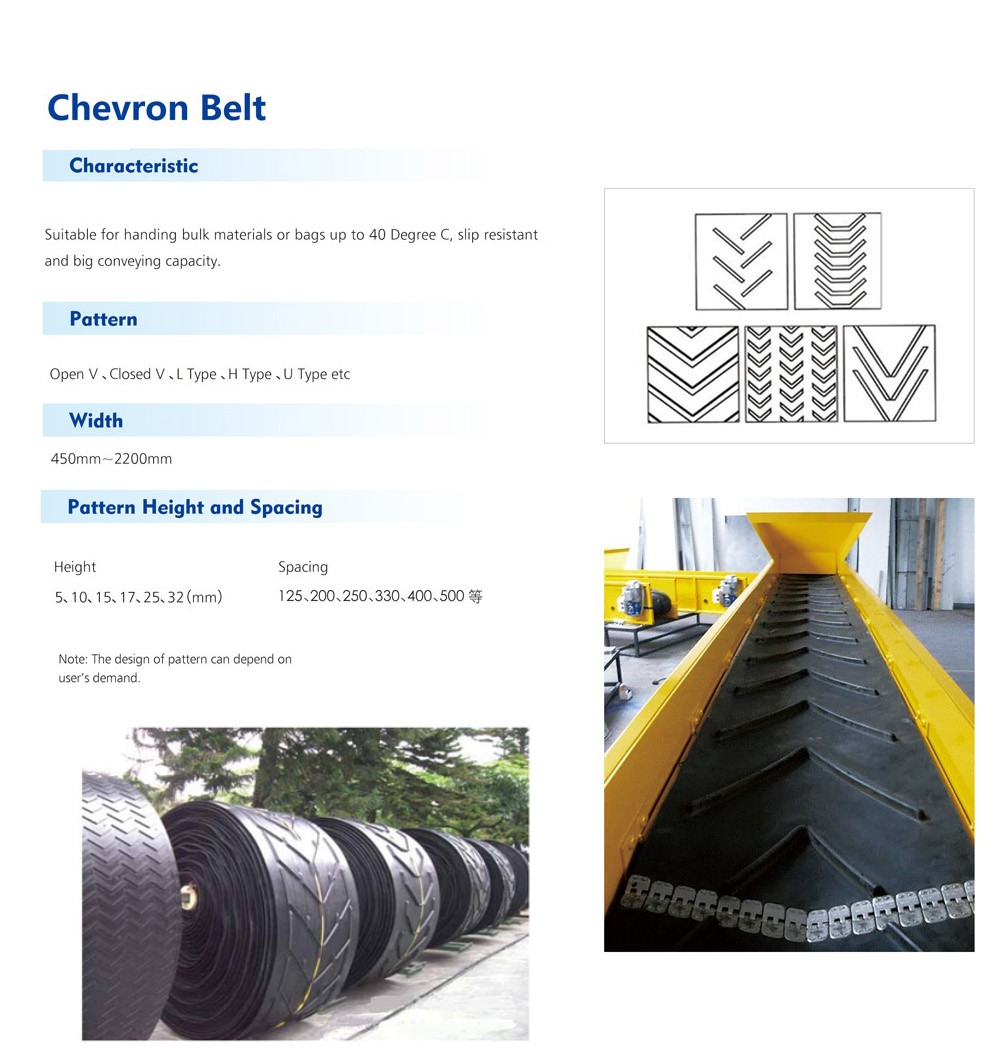

Characteristics of pattern conveyor belt:
(1) Core material: ordinary cotton canvas (CC), polyester-cotton blended canvas (CP), nylon (NN), polyester (EP), etc
(2) Bandwidth: 300 ~ 800mm
(3) pattern height: 5,10,15,20 mm note: pattern shape can be designed according to user requirements.
(4) Features: suitable for conveying materials with inclination Angle of 0 ~ 40° to prevent material sliding.

Multi Ply Rubber Conveyor Belt widely used in mining ,harbour,coal metallurgy chemical and else field for conveying materials .Normally use for short and middle...
Product characteristics: cotton canvas, nylon canvas or polyester canvas as the belt core, covering rubber with natural rubber and butadiene rubber rubber, wit...
Oil Resistant Rubber Conveyor Belt is made of cotton canvas, nylon canvas, polyester canvas, after calendering, forming, vulcanization and other processes refin...
Heat Resistance Rubber Conveyor Belt is made of multi-layer rubber cotton canvas (polyester cotton) or polyester canvas covered with high temperature or heat r...
