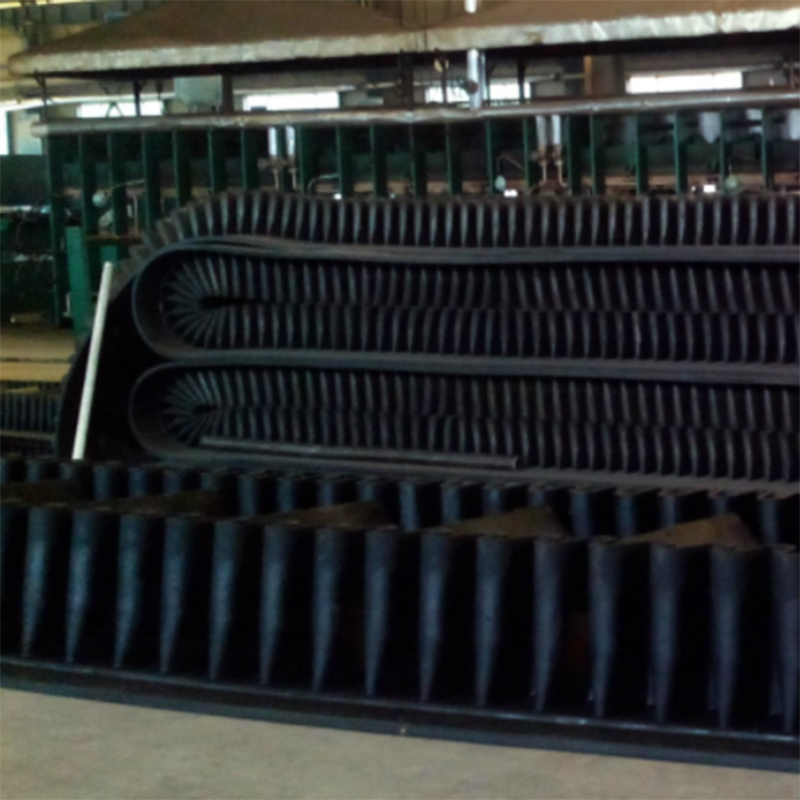

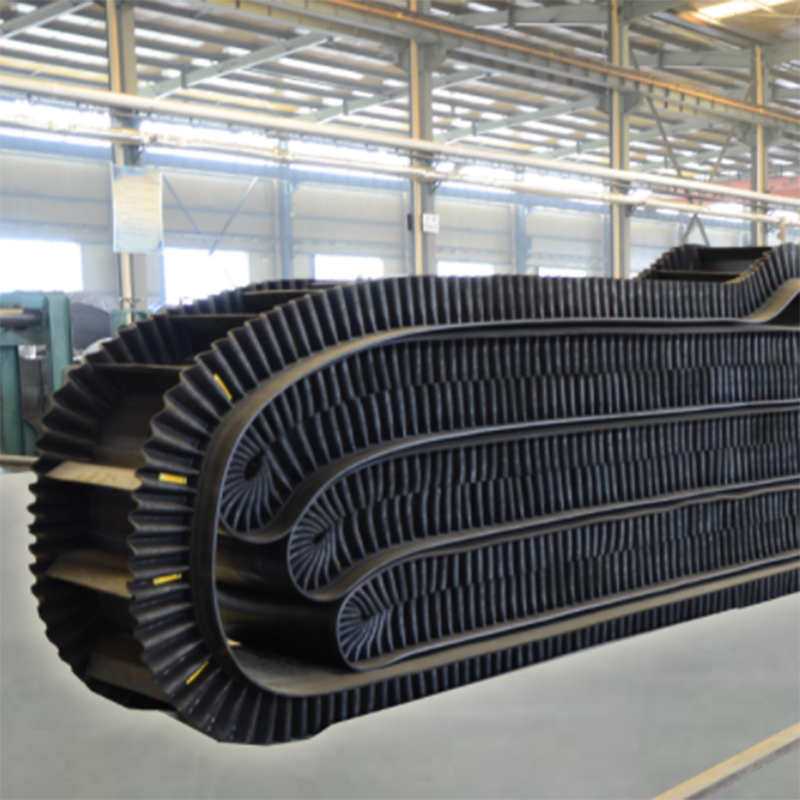

Corrugated Sidewall Rubber Conveyor Belt is composed of three parts: base band, retaining band and diaphragm. The guard edge is used to prevent material from slipping and falling. For the convenience of bypassing the drum, the edge of the file is designed to be corrugated; The role of diaphragm is to support the material, in order to achieve large Angle conveying, using T TC type. The baffle and diaphragm are connected to the base band by a secondary vulcanization method with high bonding strength.

Advantages:

1. No transfer points.

2. No spillage with steep angle conveying.

3. Maximum utilization of space.

4. Minimum maintenance, long belt life.

5. Wide range of materials can be handled.

6. Low power requirement, quiet smooth running.

7. Smooth transition from horizontal to tilt or vertical.

Depending on customers' request, our sidewalls and cleats can be reinforced with diagonal fabric and bolted together. We normally use XE-layer reinforcement; However metal breaker with cross rigid character can also be applied in various specifications. We offer a large portfolio of possible combinations of cleats and sidewalls in height up to 500mm.

The parameter relationship of the base belt width and flange height is as the following table(mm):

We could offer belt with cover grade in accordance to International standard such as DIN 22102, RMA, AS 1332, SABS 1173/2000, IS 1891, BS 490, JIS K 6322, etc.
